M&K Picking Stations are bespoke constructions designed to enable the manual separation of recyclables within an enclosed and controlled environment, by operators working at a conveyor line that passes through.
Picking Stations
Picking Stations are typically elevated on a platform and positioned above a number of bays. One bay for each of the waste materials to be picked from the mixed waste, such as cardboard, plastic film, wood textiles, rigid plastics etc.
Operators remove targeted materials from the picking belt and drop into appropriate bays via a series of chutes positioned adjacent to the belt. M&K Picking Stations are custom designed to take into account the throughput of the plant, the type of materials, the number of operators and the space available. They have well lit work stations with access doors and stairways.
Picking Stations are typically elevated on a platform and positioned above a number of bays. One bay for each of the waste materials to be picked from the mixed waste, such as cardboard, plastic film, wood textiles, rigid plastics etc.
Manual sorting or picking involves operatives removing selected items of recyclable waste from a conveyor picking belt and placing it into a storage bay/bin. Sorting can take place in an open air environment or in enclosed picking station.
- M&K picking belts have been designed with durability, maximum production and employee comfort in mind.
- Our ergonomically designed Picking Belts allow operators to quickly, safely and comfortably recover the maximum number of products from the sorting line.
- custom made to suit each customers individual requirements depending on their specific waste, throughput and site restrictions.
- The modular design allows for additional bays to be added at a later date as demand increases.
- A variety of support frame and bay options are also available depending on site requirements.
Specifications
- 3mm outer skin steel clad
- 3.8M wide
- office type internal finish
- double glazed PVC windows
- anti vandal proof guards on windows
- heaters and electric sockets through out
- 25mm insulation to provide heat & noise insulation.
- external drop chutes

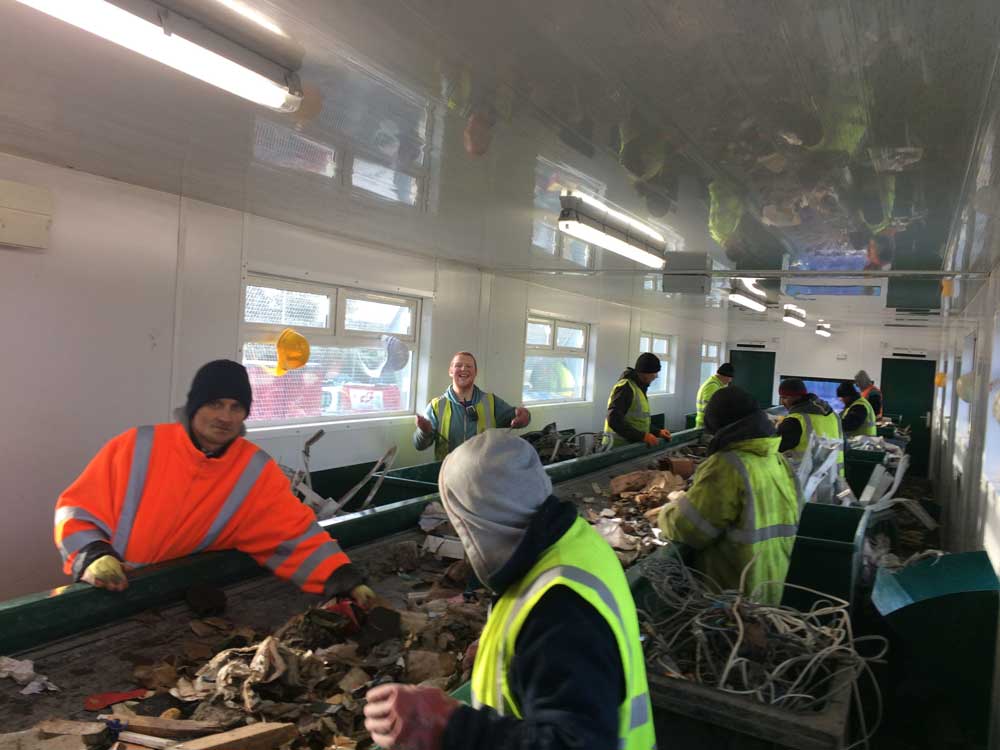

Picking Stations
Picking Stations – drop boxes & external drop chutes
Picking Stations – Wheelie Bins
Picking Stations
Picking Stations
M&K Picking Station after 12000 hours.
Picking Stations
M&K Picking Station after 12000 hours.
M&K Picking Station during commissioning.
M&K Picking Station after 8000 hours.
M&K Picking Station after 12000 hours.
