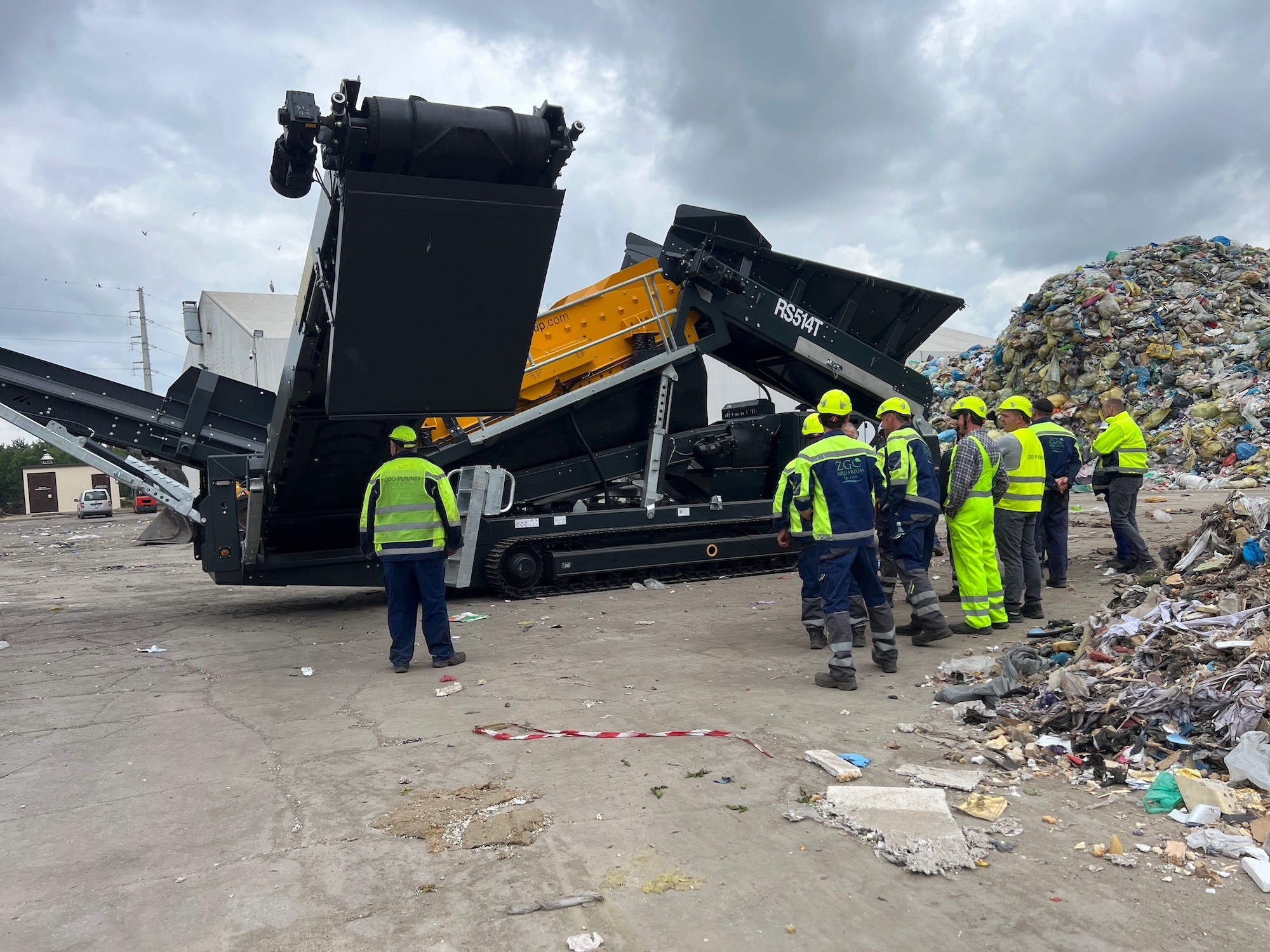

How to Unfold an RS514T Track Recycling Screen

Step-by-step instructions and video guide for safely unfolding an RS514T track recycling screen before operation

Safety Checklist (Before Unfolding)
Before unfolding the RS514T track recycling screen, ensure the following checks have been completed:

✅ The machine is positioned on level, stable ground
✅ All personnel are clear of the machine and unfolding area
✅ Emergency stop (E‑stop) buttons are checked and functioning
✅ Engine oil level has been checked and is within specification
✅ Diesel fuel level is sufficient for operation
✅ Hydraulic oil level has been checked and is correct
✅ No visible damage, loose components, or obstructions are present
✅ All guards and protective covers are correctly fitted
✅ The operator has clear visibility of all moving components
⚠️ Important:
If any of the above checks are not satisfactory, do not start or unfold the machine.

Sequence

Start Generator
Switch Hydraulic Powerpack on
Unfold Fold Fines Conveyor
Unfold Mid Size Conveyor
Raise Oversize Conveyor
Move Feeder toward screen
Raise Screen
Secure modules with pins to ensure no movement during operation

FAQs

Start Generator
Switch Hydraulic Powerpack on
Unfold Fold Fines Conveyor
Unfold Mid Size Conveyor
Raise Oversize Conveyor
Move Feeder toward screen
Raise Screen
Secure modules with pins to ensure no movement during operation

NOTE. Make sure the machine is level

NOTE:

Ensure pre-start checks have been completed

Check Engine Oil Level
Check the Diesel Level
Check the Hydraulic Oil Level
Check eStops
Check that all personnel are clear of the equipment

If any of the above are not satisfactory do not start the machine
Turn the key switch to ‘ON’. Generator will start. HMI will boot up in a few seconds

The Hydraulic Powerpack is on a timer.

Timer has timed out.

Switch the Powerpack on again at the HMI

Yes – unfold the fe discharge chute first before .

When carried out correctly and without interruption, unfolding the RS514T typically takes around 10–15 minutes, depending on site conditions and operator experience.
